Introduction:

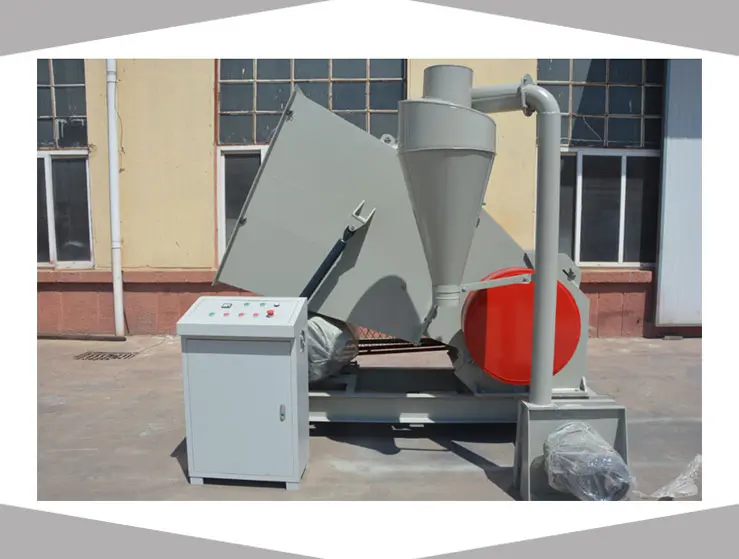

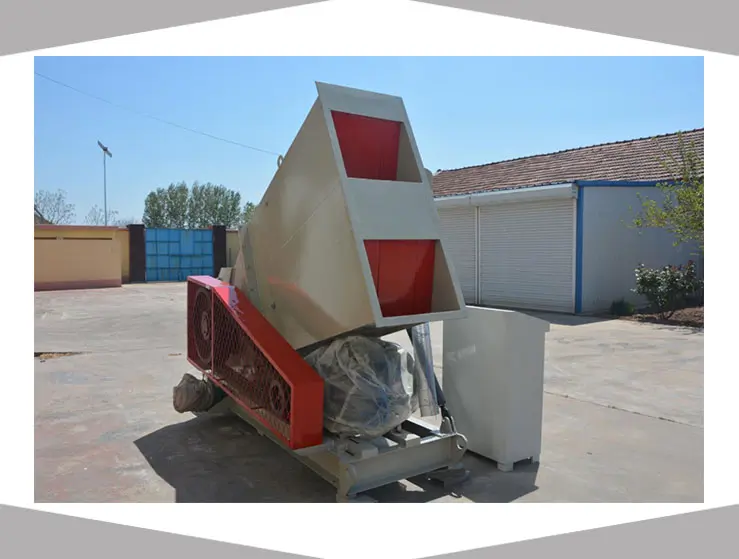

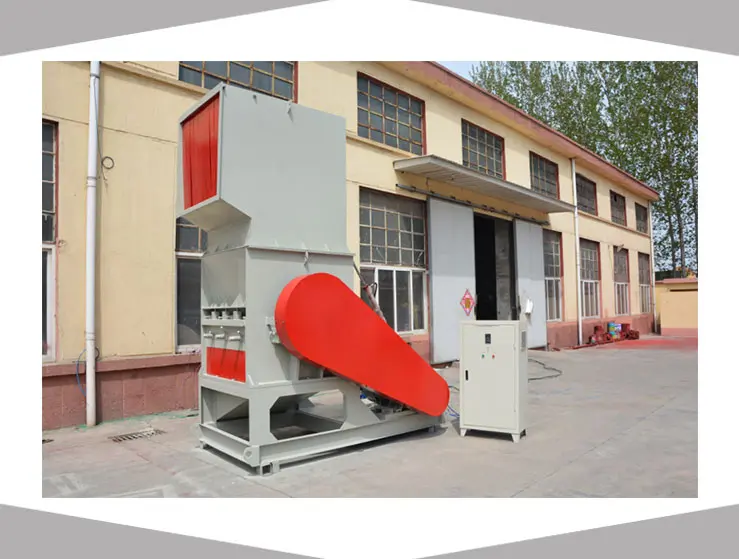

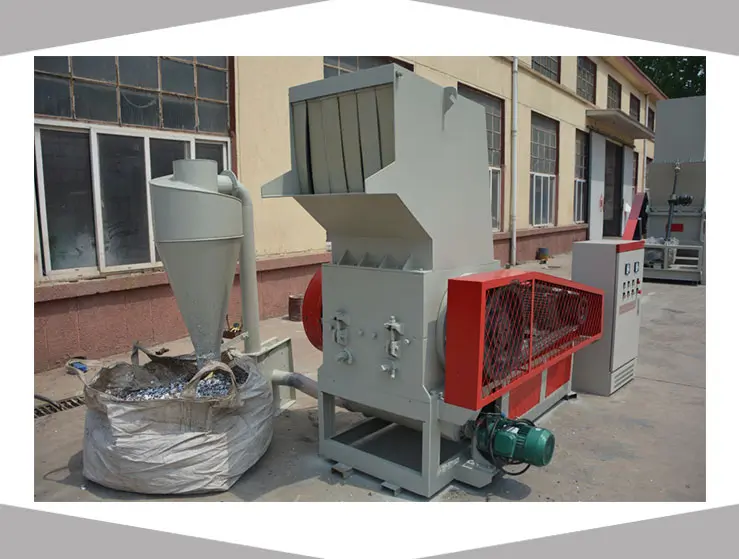

SWP series plastic crusher is designed to crush various sorts of plastic and rubber with thermoplasticity such as plastic profile, pipe, rod, thread, film and waste rubber products. The consequent grain can be used for extrusion and injection.
Plastic crusher is well used to reclaim large profiles and pipes for its strong crushing capability, high output and stable performance. Equipped with automatic material drawing machine, the automation degree of the crusher is highly improved.
The main technical parameters:
| Item | SWP360 | SWP450 | SWP500 | SWP560 | SWP630 | SWP750 | SWP800 | SWP1000 |
| Rotary blade dia.(mm) | 360 | 450 | 500 | 560 | 630 | 750 | 800 | |
| Quantity of movable knives (piece) |
3 |
5 |
3 |
12 |
3 |
3 |
6 |
6 |
| Quantity of fixed knives (piece) | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 |
| Net diameter (mm) | 10-12 | 10-12 | 10-16 | 10-16 | 10-16 | 10-16 | 10-16 | 10-16 |
| Spout diameter (mm) | 520×260 | 375×320 | 520×260 | 550×300 | x | x | 1000×1000 | x |
| Crushing capacity (kg/h) | 350-500 | 350-500 | 400-800 | 500-800 | 400-800 | 600-1000 | 1300-1600 | 800-1200 |
| Motor power (kw) | 11 | 22 | 22 or 30 | 30 or 37 | 30 | 45 | 45 | 55 |
| Oversize (mm) | 1600x1100x1460 | 2200x910x1860 | 2100x1100x1850 | 2200x1100x1900 | 2710x1300x2840 | 3010x1500x2960 | 1900x1500x3400 | 3010x1800x2960 |
| Weight (kg) | 1000 | 1800 | 2950 | 3150 | 3500 | 4500 | 9000 | 8600 |
Quality warranty:
1, We provide a one-year warranty on all products.
2, After sale service and parts interchange during warranty period free of charge.
3, Life time paid warranty available.
Your benefits with our machines:
All plastic extruder machinery components are fine tuned to work perfectly together, high quality level, latest machine design, engineered to meet the needs of customers in international markets, faster delivery times plus good service and spare parts.
