a. Large Diameter HDPE Water/Gas Supply Pipe Extrusion Line

Application: With this production line you can extrude high quality large diameter watersupply and gas supply pipes. The pipes produced by our line have excellent stiffness and flexibility, resistance to creep deformation, excellent heat-linkage. Large diameter HDPE pipes start to play very important role in the city water and gas supply systems.

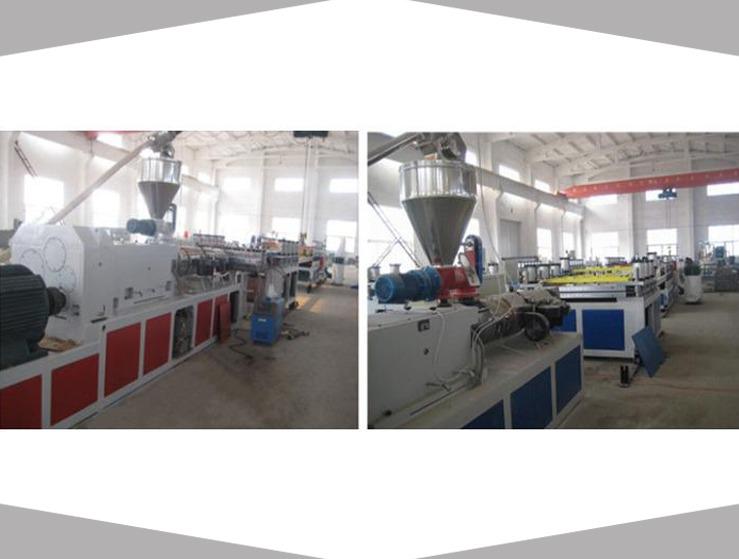

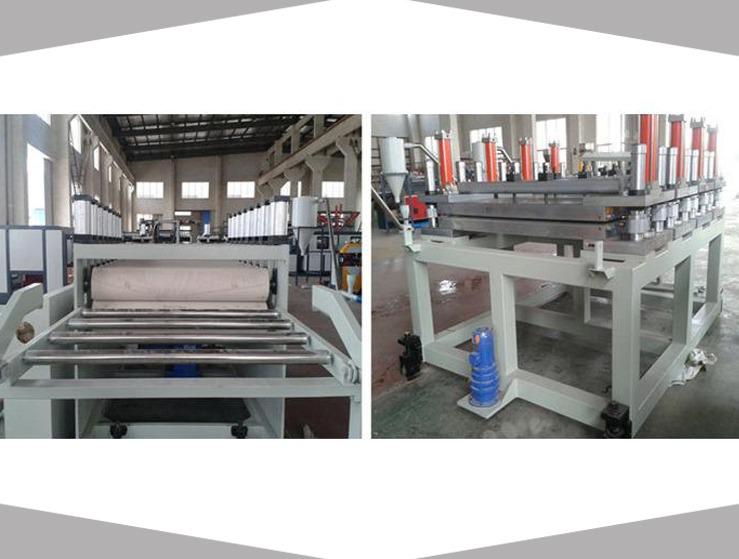

Properties and Advantages: The production line consists of control system, extruder, mould, calibration unit, haul-off unit, planetary cutter and stacker. Downstream equipment: The die head is the latest designed lattice type or spiral diffluence type, it features in easy adjustment and even extrusion. The calibration unit adopts the special slotted technology and it is cooled down by the water ring, so that the pipe can be precisely made. The electrical control parts, equipped with PLC module and LC, features in perfect alarm system, friendly human-machine interface and easy operation.


Model Diameter(mm) Extruder Capacity(kg/h) Power(kw)
SJ75 20-75 SJ60/37 320 150
SJ250 50-250 SJ75/37 550 230
SJ450 160-450 SJ90/37 850 450
SJ630 315-630 SJ120/37 1200 630
SJ800 450-800 SJ120/37 1200 680
SJ1000 500-1000 SJ150/37 1400 815
SJ1200 710-1200 SJ150/37 1400 930
SJ1600 900-1600 SJ150/37


1900 1200
SJ2000 1200-2000 SJ150/37


2200 1400
SJ2500 1600-2500 SJ150/37


2500 1650
SJ3000 2000-3000 SJ150/37


2500 1650


Quality warranty:

  1. We provide a one-year warranty on all products.
  2.  After sale service and parts interchange during warranty period free of charge.
  3. Life time paid warranty available.

Your benefits with our machines:

All plastic extruder machinery components are fine tuned to work perfectly together, high quality level, latest machine design, engineered to meet the needs of customers in international markets, faster delivery times plus good service and spare parts.
