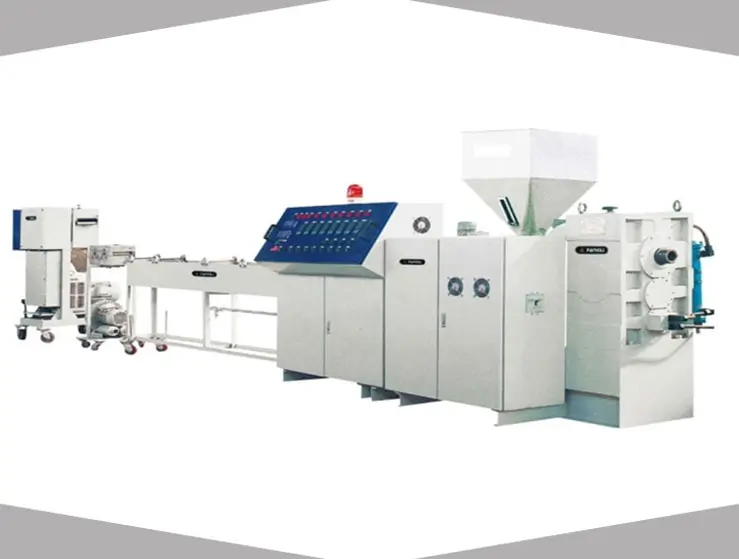

1.This granulator/Pelletizer is mainly used to recycle and reprocess waste and new plastic PE, PP.
2. Adopt force feeding, as the screw can exclude gas and steam. After plasticization and extrusion, the particles can have high density, nice surface, high output, stable extrusion. Customers can certainly adopt which feeder they like.
3. This granulator is with Water-ring Cutting, the output is round granules, there is also the other kind, with the output cylinder granules.
4. Production capacity: 100-500kg/h.
5. These machines are for different customers to choose. And we could also design special granulator line according to the customers’ request.
6. High-efficient force-feeder ensures high capacity feeding, low energy consumption
7. Single screw extruder, equipped with specially designed screw & barrel, venting system, has a very good output capacity.
8. Pelletizing style: Water-ring cutting with extrusion mould, even cutting ensures good shape.
9. Auxiliary machine: Pellets cooling & classifying
10. Adopt PLC control and use all electric parts which is word famous brand. For example. Siemens/Omron/Schneider
Technical List:
| model | Screw diameter | L/D | Main motor power | capacity (KG) |
| SJ-100 | 100mm | 25-28 | 45-55kw | 80-180 |
| SJ-120 | 120mm | 25-28 | 55-75kw | 150-250 |
| SJ-150 | 150mm | 25-28 | 75-90kw | 250-350 |
| SJ-180 | 180mm | 25-28 | 90-132kw | 350-500 |
| SJ-200 | 200mm | 25-28 | 160-220kw | 400-600 |
Quality warranty:
1, We provide a one-year warranty on all products.
2, After sale service and parts interchange during warranty period free of charge.
3, Life time paid warranty available.
Your benefits with our machines:
All plastic extruder machinery components are fine tuned to work perfectly together, high quality level, latest machine design, engineered to meet the needs of customers in international markets, faster delivery times plus good service and spare parts.
